IE MK6 GTI (2.0TSI) HIGH-FLOW COLD AIR INTAKE KIT

$689.00

VOLKSWAGEN TSI MK5 & MK6 HIGH-FLOW COLD AIR INTAKE KIT   APPLICATIONS VW MK5 GTI 2.0T TSI (EA888 Gen1/2) VW MK6 GTI 2.0T TSI (EA888 Gen1/2) VW MK6 Jetta/GLI 2.0T TSI (EA888 Gen1/2) VW 2009 - 2016 CC 2.0T TSI (EA888 Gen1/2) FEATURES INCREASED HORSEPOWER & TORQUE - Increase your power output across the entire RPM range ENHANCED ENGINE, TURBO, & BLOW-OFF SOUND  -...

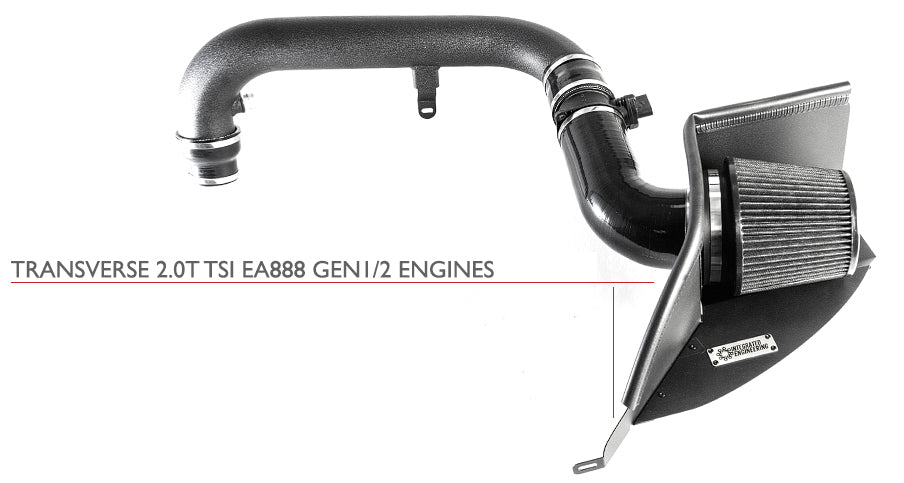

VOLKSWAGEN TSI MK5 & MK6 HIGH-FLOW COLD AIR INTAKE KIT

 Mk6 GTI Cold Air Inake

APPLICATIONS

  • VW MK5 GTI 2.0T TSI (EA888 Gen1/2)
  • VW MK6 GTI 2.0T TSI (EA888 Gen1/2)
  • VW MK6 Jetta/GLI 2.0T TSI (EA888 Gen1/2)
  • VW 2009 - 2016 CC 2.0T TSI (EA888 Gen1/2)

FEATURES

  • INCREASED HORSEPOWER & TORQUE - Increase your power output across the entire RPM range
  • ENHANCED ENGINE, TURBO, & BLOW-OFF SOUND  - Add excitment to your drive
  • HIGH-FLOW BELLMOUTH  - Increases air velocity for maximum performance
  • MASSIVE OVER-SIZED AIR FILTER  - Will support any horsepower target
  • BLACK POWDER COAT FINISH - Looks great in your engine bay
  • EASY INSTALL - No modifications needed to the car & is easily reversible
  • USES FACTORY MOUNTING GROMMETS & HARDWARE - No unwanted trips to the auto parts store
  • HEAT SHIELDING & DIRECTED AIR FLOW - For lowest possible intake temperatures
  • REINFORCED SILICONE HOSES - For reliablity and longevity
  • FITS DSG AND MANUAL TRANSMISSIONS - All transverse 2.0T TSI MK5/MK6 engines.

VIDEO OVERVIEW

ADDITIONAL DETAILS

MK6 GTI Cold Air Intake Install Pics

OVERVIEW
Feed your MK5 or MK6 turbo with a supply of cold air with this direct-fit high-flow cold air intake kit. This intake features a generously-sized inlet pipe that connects to the OE mass air flow (MAF) sensor.  The MAF sensor receives high-velocity air fed directly from a 5" bellmouth. Our high-flow bellmouth is neatly housed in a heat shield, which separates the air filter from hot under-hood air, allowing only cold air to be drawn in to the turbo inlet directly from the front of the car.

DIRECT FIT
This air intake kit provides all the necessary piping and couplers to plumb the intake system from the turbo to the MAF and then to the heat shield.  The heat shield installs using the OE grommets for easy maintenance and reliable mounting with no rubbing or interference with other factory parts.

HIGH-FLOW BELLMOUTH
The air intake utilizes a high-flow bellmouth behind the air filter to deliver as much air as possible. This bellmouth design increases the air velocity to the MAF and pulls cold air equally from all directions into the filter. This bellmouth is securely fastened to the heat shield as a clean pass-through providing a solid mount for the air filter and turbo inlet pipe. You have no worry of the intake pipe moving around and causing damage unlike other intake kits on the market, which simply clamp the filter onto the end of the inlet pipe or MAF.  Furthermore, the bellmouth opening allows for a filter with a very large surface area that can support any horsepower goal.  The same filter and bellmouth design has been tested to support over 500HP on our twin-scroll big turbo kits with huge success.

COLD AIR HEAT SHIELD
The IE heat shield is designed to create a thermal barrier blocking all of the radiant heat from the engine bay. Only cold air from the front of the vehicle is drawn into the filter from the opening in the radiator support keeping air intake temperatures as cold as possible. This allows factory placement of the intake to be used without placing the filter lower in the vehicle where it can be subjected to engine harming road debris or fluid.

IE Mk6 Cold Air Intake

  • Model: IEINCC
  • Manufactured by: Integrated Engineering

$689.00
